Trendnet 16-Port Compact Gigabit Switch TEG-S16R Review
User Rating: / 4
PoorBest
Written by Munk
Hits smaller text tool iconmedium text tool iconlarger text tool icon

Wireless networking is very appealing for most users these days. The convenience of internet and network access anywhere in your house is a luxury most fall in love with. There are the odd drawbacks to wireless over wired connections though. For one you do not have the same throughput as a gigabit connection and your security is more at risk through wireless as opposed to hard wired. What about those that have multiple network reliant devices. The good ol’ 4 or 5 port router just doesn’t cut it for them anymore they need serious connections throughout the whole house? This is where the simple to use Trendnet 16-Port Compact Gigabit Switch comes into play. Having more ports than you can shake a stick at and the speed of a gigabit connection you will be transferring files like a pro without worrying about outsiders viewing your personal information. Let’s get a closer look at this product and see how well it performs:

Provided by: Trendnet

Price: $179.99

Closer Look:





 Specifications and Features:




Compatible with the following operating systems:

The 16-Port Gigabit Switch provides high bandwidth performance, ease of use and reliability in a compact form factor.

Boost office efficiency with Gigabit speeds to the desktop. Move large bandwidth intensive files faster and increase network backbone server speeds. The 11” wide metal chassis switch easily fits on a desk and comes with a 19“ rack mount kit. Store-and-forward switching, broadcast storm protection, a 32Gbps switching capacity and an 8kbytes MAC Address table provides an optimum network experience. 802.3x Flow Control for full-duplex mode and back pressure Flow Control for half-duplex mode ensures seamless data transmission.


RoHS Compliant





Hardware

Standard

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T

Interface

16 10/100/1000Mbps Auto-MDIX RJ-45 ports

Network Media

Ethernet: UTP/STP Cat. 3,4,5,5e
Fast Ethernet: UTP/STP Cat. 5e, 6
Gigabit: UTP/STP Cat 5e, 6

Switch Fabric

32Gbps Forwarding Capacity

Data Transfer Rate

Ethernet: 10Mbps/20Mbps (Half/Full Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)
Gigabit: 2000Mbps (Full Duplex)

Data RAM Buffering

500KBytes per device

MAC Table

8Kbytes or 4096 entries per device

Protocol

CSMA/CD

Transmission Method

Store-And-Forward

Power

100-240VAC, 50/60Hz, Internal Power Supply

Power Consumption

14 Watts (max)

Diagnostic LED

Power, Link/ACT, 10/100Mbps, 1000Mbps

Weight

1.7kg (3.75lb)

Dimensions (W x H x D)

280 x 180 x 45mm (11 x 7.09 x 1.77 in.)

Temperature

Operating: 0°C ~ 50°C (32°F ~ 122°F)
Storage: -20°C ~ 70°C (-4°F ~ 158°F)

Humidity

Operating: 10 % ~ 90 % (Non-Condensing)
Storage: 5 % ~ 90 %(Non-Condensing)

Certification

CE, FCC

  • Boost office efficiency with this high performance 16-port Gigabit switch
  • 16 x 10/100/1000Mbps RJ-45 Auto-MDIX Gigabit ports
  • Enjoy 500Kbytes data buffering RAM and non-blocking architecture
  • Provides a robust 32Gbps switching capacity
  • Supports Jumbo Frame packet transfer (Max size up to 12.2Kbytes)
  • Supports up to 8Kbytes MAC address entries
  • Includes 802.3x Flow Control, Broadcast Storm protection and Store-and-Forward switching
  • Windows, Linux, and Mac operating system ready

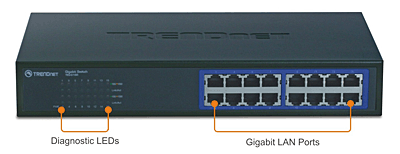

  • Diagnostic LEDs and Plug & Play installation for quick troubleshooting and setup
  • Rack mount or desktop ready
  • Compact 11” wide, 1U design with rack mount kit included
  • 5-year limited warranty

TEG-S16R



Testing Setup:

Master:

  •  Asus P6T SEX58 Motherboard
  • Core i7 920 CPU
  • 6GB Crucial Balistix 8-8-8-24 1600mHz
  • 750 GB Seagate Barracuda
  • Vista Ultimate 64bit
  • Inwin 850 Commander Series PSU
  • EAH 4850
Slave:
  • CPU - Intel Core 2 Duo E6600
  • Motherboard - Asus P5B
  • RAM - 2 x 2 GB Balistix Tracers
  • 320gb HDD Seagate
  • OS - Windows XP Pro SP3
Testing:

Due to my lack of a gigabit router I will be running the benchmark at 100mb. I will be hard wiring the master and slave through the Trendnet 16-Port Compact Gigabit Switch using my Seimens gateway as a DHCP server/router. The Benchmarking tool I will be using today is called AIDA 32.





The Trendnet 16-Port Compact Gigabit Switch works very well I had not disconnection issues the entire week I have been using it I have not been experiencing and ping loss or any other anomalies. Trendnet has made another fantastic product.

Conclusion:

Overall the Trendnet 16-Port Compact Gigabit Switch performed very well it was extremely simple to set up and has both uses in a home or in an office situation. Performance was impressive over all and the ability to rack mount it is a great bonus.

Would I recommend this product? To your run of the mill user, no, but if you have a large number of devices or you are running an office and need some more ports the simplicity and ease of use of the Trendnet 16-Port Compact Gigabit Switch will be a perfect product for your situation.

Pros:

  • Price
  • Speed
  • Ease of Use
  • Rack Mountable

Cons:

  • Cooling fan Might be a Little Loud to Keep Directly in Your Work Environment
